CUT DTF Transfer Blockout - BY THE METRE 560 x 1000 mm
€16.90 per piece
Available, delivery time: 2-5 working days
The Pro File Check does not include any design work.
The file check does not apply to Designer products and express products.
The Pro File Check cannot be ordered on its own, i.e. without the associated product order, because we would then have no file to check. If an order contains only the file check, we therefore have no choice but to cancel it. If you would like to add the check afterwards, this must be agreed with our support team.
- Format: Are your files set up in the format you ordered?
- Colour: Are your files set up in CMYK? Is the correct colour profile embedded?
- Is the main transparency set up correctly? In other words, we check that the gang sheet is not completely covered by an area of colour. This only refers to the main transparency of the sheet, not the transparencies within the graphics, because we cannot judge whether they are intended
If your files do not meet our requirements, the production and delivery time of your DTF transfers may be extended or postponed by the time it takes for the new files to arrive.
Product information "CUT DTF Transfer Blockout - BY THE METRE 560 x 1000 mm"
CUT Blockout DTF by the metre, 560 x 1000 mm
CUT Blockout DTF combines a special adhesive for dyed polyester textiles with contour-cut individual designs. The designs on the sheet are all the same size, can be removed without cutting by hand and are therefore easier to position on jerseys or teamwear. For designs that are needed again and again, and for larger B2B quantities, this saves you working time.
- Blockout DTF with a special adhesive against dye migration
- Contour-cut designs on 560 x 1000 mm
- For suitable polyester items without a water-repellent coating
- From a single piece, with tiered prices
- Print-ready file with CutContour required

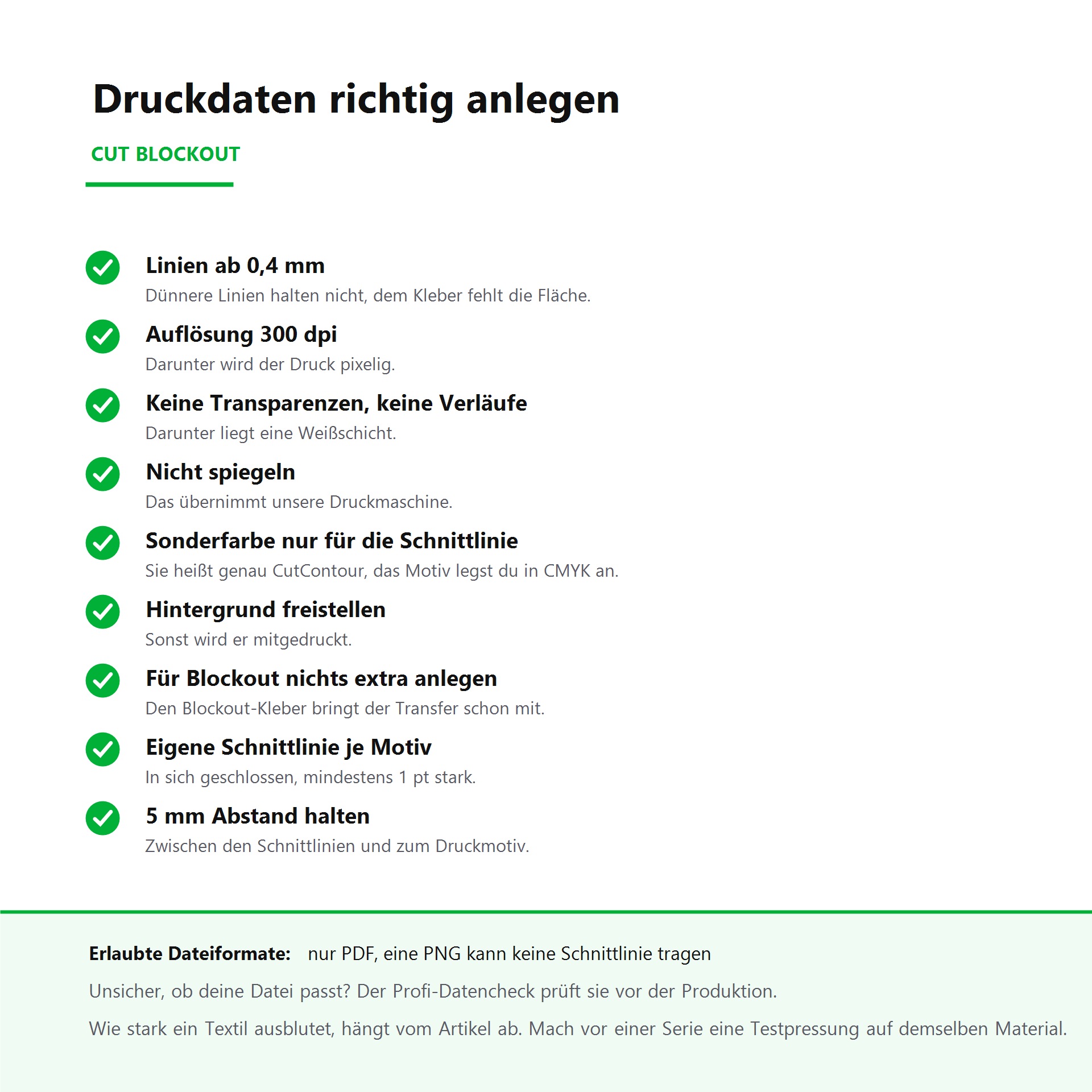

CUT Blockout template and cut paths
Use the file under Template. Draw a closed contour around each individual design, with a line thickness of at least 1 pt. Give this line a spot colour named exactly CutContour. Keep at least 5 mm of space in each case: from cut line to cut line as well as from the line to the printed design. You do not set up anything in your file for the Blockout adhesive. Further examples are shown in the article Creating a CutContour.
Save the print file as a single page and without mirroring. Set up the design in CMYK, keep the background transparent, and make print elements at least 0.4 mm thick.
How to upload your CUT Blockout sheet
Before uploading, decide whether to add the Pro File Check. Then upload your PDF with all cut paths fully set up, enter the quantity and add the fully configured item to your basket. If you order several sheets, each file gets its own quantity.

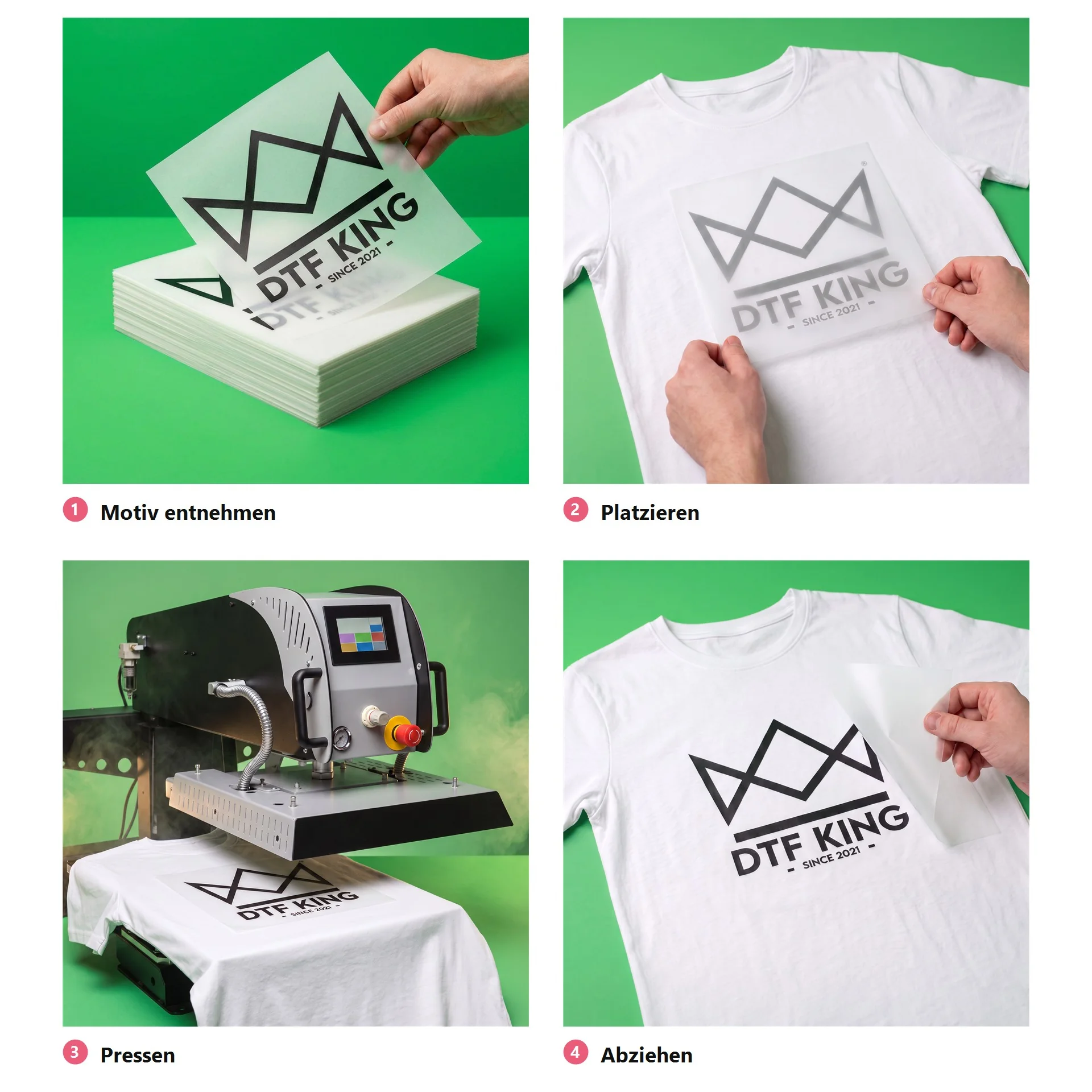

Uploads are limited to 500 MB, and multi-page PDFs are not possible. If an error is found, you will receive an email and can send the corrected PDF by email as well. Notes for pressing are listed under heat press settings.
| Length (mm): | 1000 |
|---|---|
| Width (mm): | 560 |
